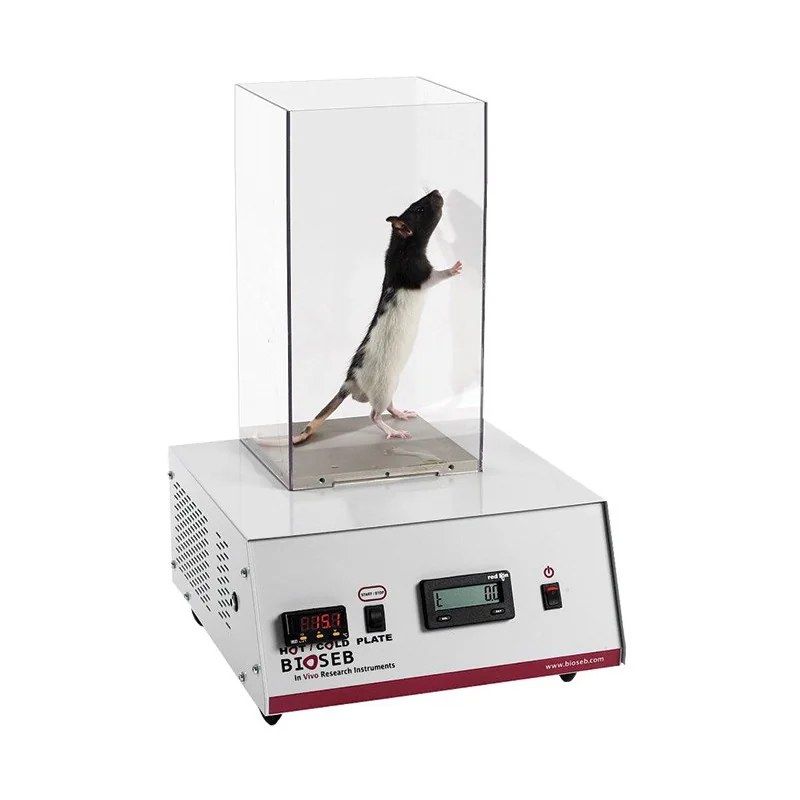

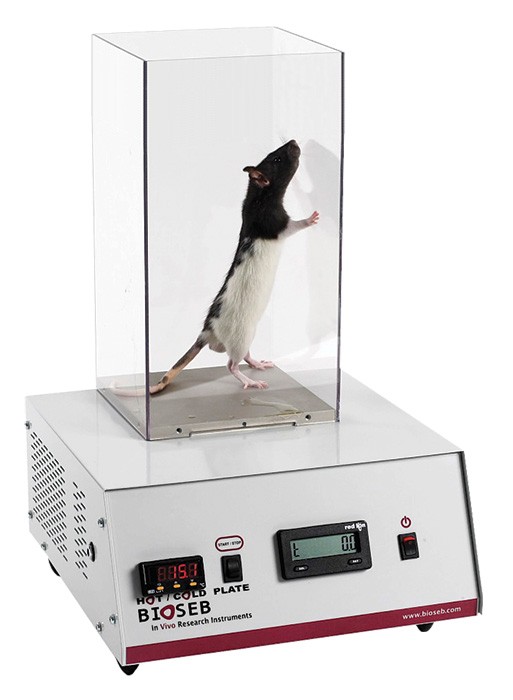

Cold Hot Plate Test
For testing animal's thermal sensitivity to pain resulting from exposure to heat or cold: the Cold Hot Plate is an innovative instrument opening new investigation fields for your analgesia and nociception research, and a useful tool for analgesic drug screening using rats or mice models.
Presentation
Bioseb’s Cold and Hot Plate Test is an innovative instrument opening new investigation fields for your analgesia research by allowing you to test animal's sensitivity to pain resulting from exposure to heat or cold.
This innovative Analgesia Meter is based on a metal plate which can be heated to 55°C and cooled to -2°C (with an ambient temperature between 20°C and 25°C). An electronic thermostat maintains the plate's temperature and a front panel digital thermometer displays the current plate temperature.
The Bioseb Cold and Hot Plate is designed to be very simple to use and very fast to reach the set temperature (as example From ambient to 4°C, the most used threshold value, it takes less than 10 minutes, and from 4°C to 55°C it takes only 5 minutes). Metrology wise, is accurate to less than 0,5°C (EEC metrology standard) and perfectly constant in the animal holder system. The preset temperature will not change for more than 0,1°C when a 400g rat is placed on the plate, and return to the set temperature is almost immediate.
Operation Principle
The animal's pain sensitivity resulting from exposure to heat or cold is tested by placing the animal (mouse or rat) on the surface of the plate and starting a built-in timer. The operator stops the timer at the instant the animal lifts its paw from the plate, reacting to the discomfort. The front panel timer then displays the number of seconds it took the animal to react. Animal reaction time is a measurement of animal resistance to pain and is used to measure efficacy of analgesics.
The operator can start and stop the timer with the front panel start/stop switch or with the included footswitch, which allows 'hands-free' operation.
BIO-CHP
Data sheet
- Dimensions - Animal container
- Plate dimensions 165 x 165 mm
- Dimensions - Overall
- Control unit dimensions 305 x 280 x 158 mm
- Power supply
- 110V/220V automatic, 100W
- Range
- -2 degrees C. to 55 degrees C (in 20 to 25 degree C. ambient environment, 50% RH)
- Applications
- Central Nervous System (CNS)
Cognitive performance
Cross-disciplinary subjects
General Activity
Metabolism
Mood Disorders
Motor Control
Neurodegeneration
Pain
Sensory system - Accuracy
- Temp accuracy +/- 0.5 degrees C.
Temperature uniformity on plate +/- 0.5 degrees C.
